Pl3.8
Pl4.3

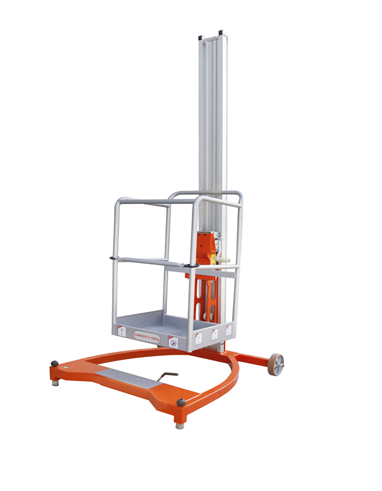

PL3.8/PL4.3
  PL3.8 PL4.3
SWL 150 Kg 150 Kg
Max accupants 1 1

Woking height 3.80m 4.30m

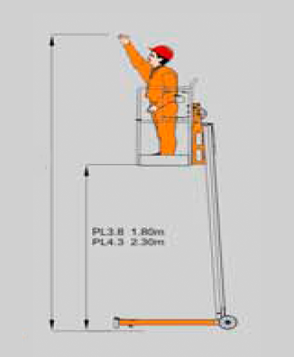

Platform floor height 1.80m 2.30m

Overall length 1.30m 1.30m
Overall width 1.13 1.13m
Overall height 2.45m 2.95m
Platform Size 0.64X 0.58m 0.64X 0.58m
Winch 22.2 cranks/m 22.2 cranks/m

Tyres
Back Wheels $200mm $200mm
Back Wheels $30mm $30mm

Weight 101 Kg 105.4 Kg
Chassis 40.3 Kg 40.3 Kg
Platform 13.6 Kg 13.6Kg
Mast 47.1 Kg 51.5 Kg
STANDARD EQUIPMENT
